Metal Shape Digital Ultrasonic Flaw Detector FD219 With Display

Metal Shape Digital Ultrasonic Flaw Detector FD219



HUATEC FD219 flaw detector is a portable industrial digital ultrasonic flaw detector that can detect, locate, evaluate and diagnose various defects (cracks, inclusions, pores, etc.) in the workpiece quickly, conveniently, without damage, and accurately.



l Measuring Range: 0 to 15000 mm, at steel velocity

l Pulse Repetition Frequency ranges from 20 Hz to 2000 Hz

l Material Velocity: 1000 to 20000m/s

l Pulse Repetition Frequency ranges from 20 Hz to 2000 Hz

l Dynamic range: more 40dB

l System Linearity: Horizontal: +/-0.2% FSW,

Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB.

l Resolving Power: more than 40dB

l Sensitivity Leavings: more than 50dB(Deep 200mmФ2 flat-bottomed hole)

l Reject (suppression): 0 to 80% full screen height

l Noise: less than10%

l Gate Monitors: Two independent gates controllable over entire sweep range

l Gain: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB.

l Bandwidth (amplifier bandpass ): 0.2 to 20 MHz

l Pulse Displacement: more than 32dB

l Display Delay: -20 to 3400 µs

l Probe Delay/Zero Offset : 0 to 99.99µs

l Test Modes: Pulse echo, dual element and thru-transmission

l Pulser: Tunable Wave Pulser

l Pulse Energy: 100V, 200V, 250V, 300V, 500V selectable

l Rectification: Positive half wave, negative half wave, full wave, RF

l Units: Inch or millimeter

l Transducer Connections: BNC or LEMO

l Power Requirements: AC Mains 100-240 VAC, 50-60 Hz

l Operating Temperature: -10℃ to 50℃, Storage Temperature: -30℃ to 50℃



l Measuring Range: 0 to 15000 mm, at steel velocity

l Pulse Repetition Frequency ranges from 20 Hz to 2000 Hz

l Material Velocity: 1000 to 20000m/s

l Pulse Repetition Frequency ranges from 20 Hz to 2000 Hz

l Dynamic range: more 40dB

l System Linearity: Horizontal: +/-0.2% FSW,

Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB.

l Resolving Power: more than 40dB

l Sensitivity Leavings: more than 50dB(Deep 200mmФ2 flat-bottomed hole)

l Reject (suppression): 0 to 80% full screen height

l Noise: less than10%

l Gate Monitors: Two independent gates controllable over entire sweep range

l Gain: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB.

l Bandwidth (amplifier bandpass ): 0.2 to 20 MHz

l Pulse Displacement: more than 32dB

l Display Delay: -20 to 3400 µs

l Probe Delay/Zero Offset : 0 to 99.99µs

l Test Modes: Pulse echo, dual element and thru-transmission

l Pulser: Tunable Wave Pulser

l Pulse Energy: 100V, 200V, 250V, 300V, 500V selectable

l Rectification: Positive half wave, negative half wave, full wave, RF

l Units: Inch or millimeter

l Transducer Connections: BNC or LEMO

l Power Requirements: AC Mains 100-240 VAC, 50-60 Hz

l Operating Temperature: -10℃ to 50℃, Storage Temperature: -30℃ to 50℃

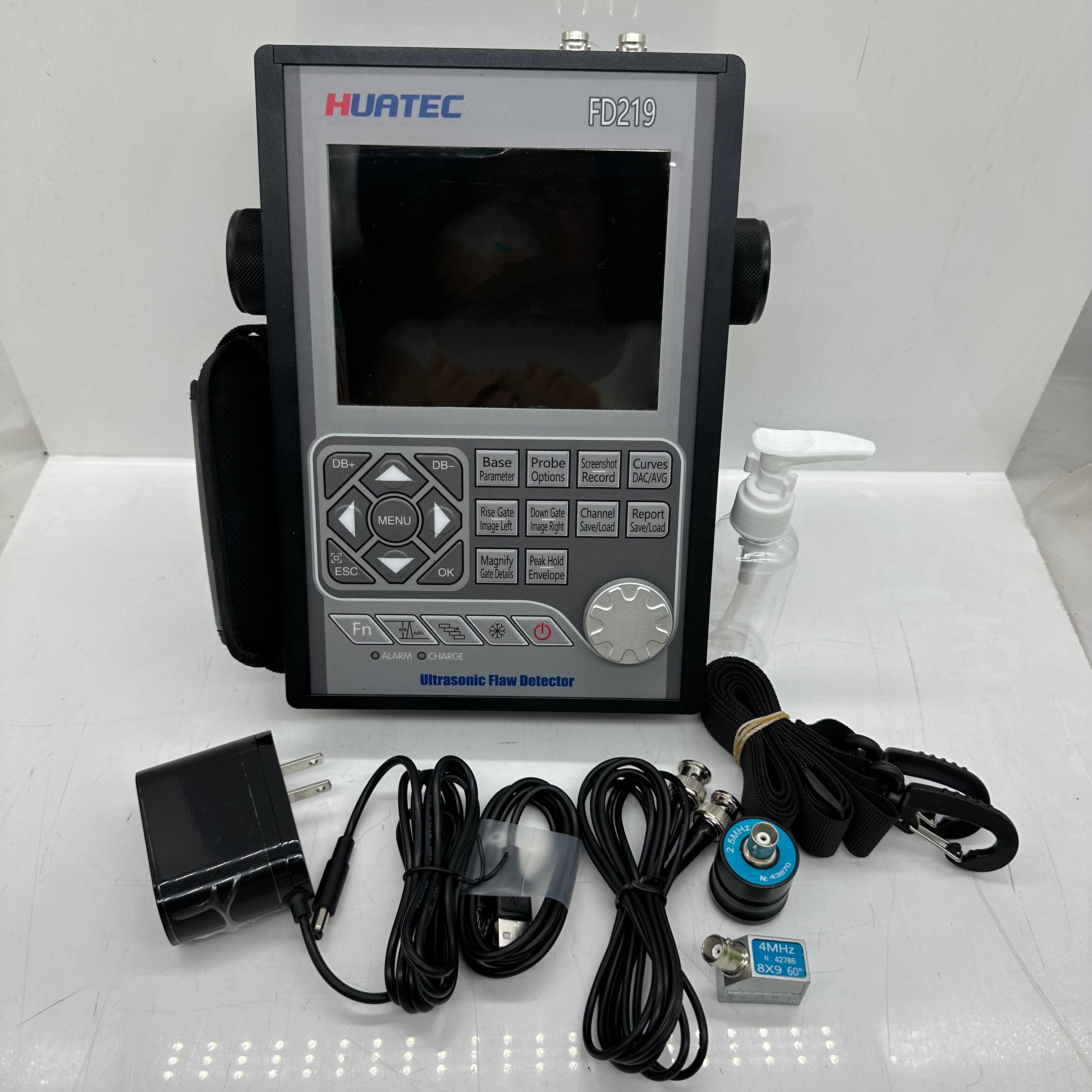

Standard Package: Host ,Straight Probe 2.5MHz 20mm, Angle Probe 4MHz 8X9 60degrees, Probe Connecting Cable, Power Adaptor & Cable, PC Software,Communication Cable, User Manual, Calibration Certificate, Instrument Case
