Rebar Corrosion Detector HCD-110 NDT Instrument Test Rebar Corrosion In The Concrete Structure

Name: Rebar Corrosion Detector HCD110 NDT Instrument Test Rebar Corrosion In The Concrete Structure
Brand: Huatec
Price: 1 USD

Buy cheap Rebar Corrosion Detector HCD-110 NDT Instrument Test Rebar Corrosion In The Concrete Structure product

Brand Name : Huatec

Model Number : HCD-110

Certification : ISO CE GOST

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 500 sets per month

Delivery Time : 5~10 working days

Packaging Details : Packed in high quality cartons

Model : HCD-110

Potential electrode : Φ37X127mm

Electrode weight : 200g

Potential measurement range : ±1000mv

Test Accuracy : 1mv

Contact Now

Rebar Corrosion Detector HCD-110 NDT Instrument Test Rebar Corrosion In The Concrete Structure

Features:

1.Easy to operate, fast and accurate read. The result is displayed with numbers or graphics.

2.Displays rebar corrosion degree with 9-level grey or colorful graphics

3.Measured data is inputted to PC software from USB interface.

4.Easy to operate, have concise software interface, have powerful analytical processing, can obtain testing report directly.

Brief introduction:

HCD-110 rebar corrosion detector is NDT instrument which tests rebar corrosion in the concrete structure. Using electrochemistry method, do the functions for corrosion detection, data analysis, storage and output etc. It is a detection instrument which is handheld, measurement accurately and easy to use.

Technical Specification:

Items	SPEC
Potential electrode	Φ37X127mm
Electrode weight	200g
Power supply	Alkaline cell X 6
Potential measurement range	±1000mv
Test Accuracy	1mv
Distance of test point	0 - 1000mm
Available capacity	50000 test points,5000test areas
Work temperature range	-10℃ - 40℃
Size	220×145×60mm

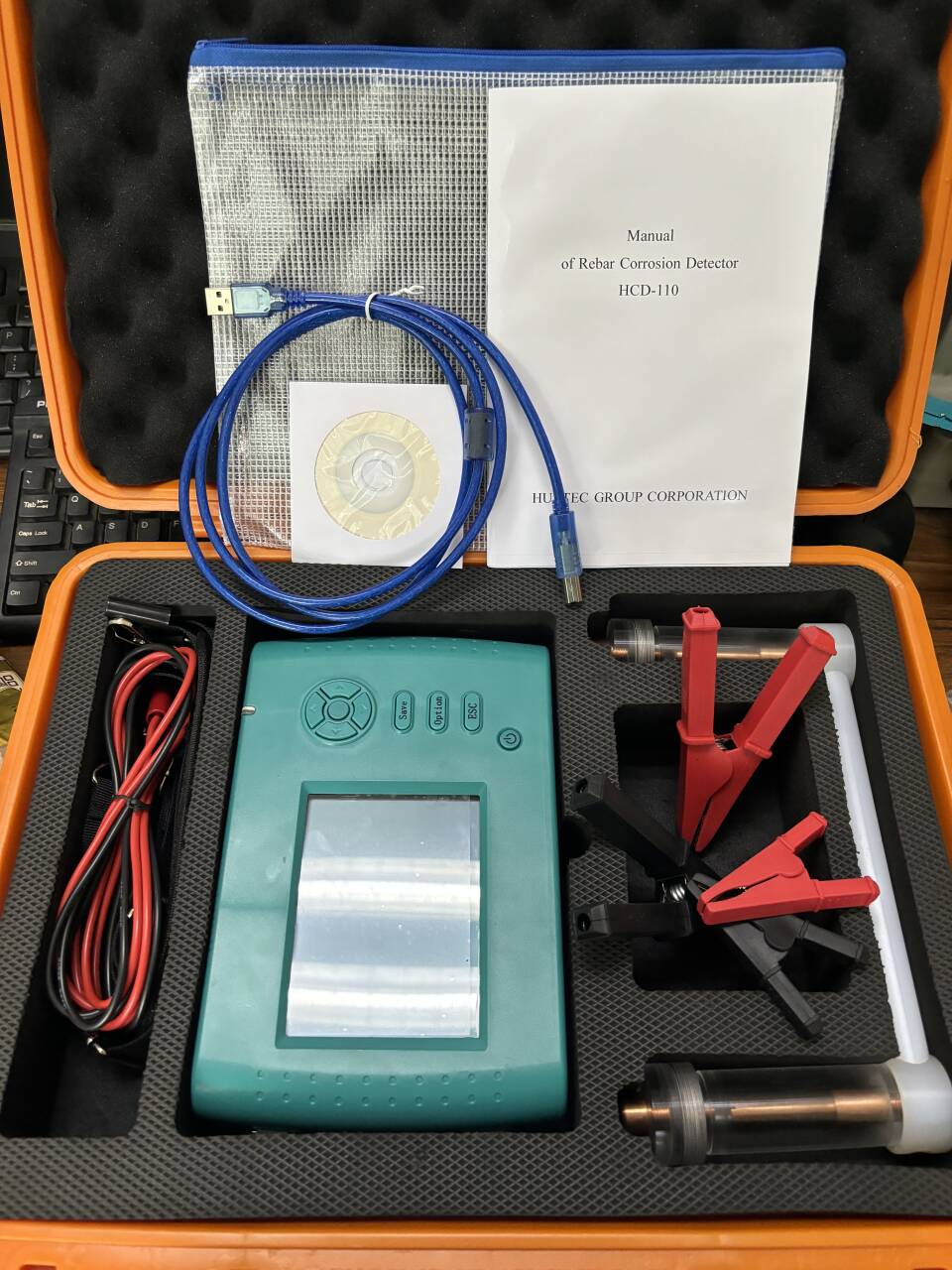

Standard configuration

Main Unit HCD-110 1unit

Signal transmission line 1pc

Lateral device 1pc

USB data line 1pc

Clamp 1pc

Instruction manual 1pc

Calibration certificate 1pc

Warrant card 1pc

Rebar Corrosion Detector HCD-110 NDT Instrument Test Rebar Corrosion In The Concrete Structure

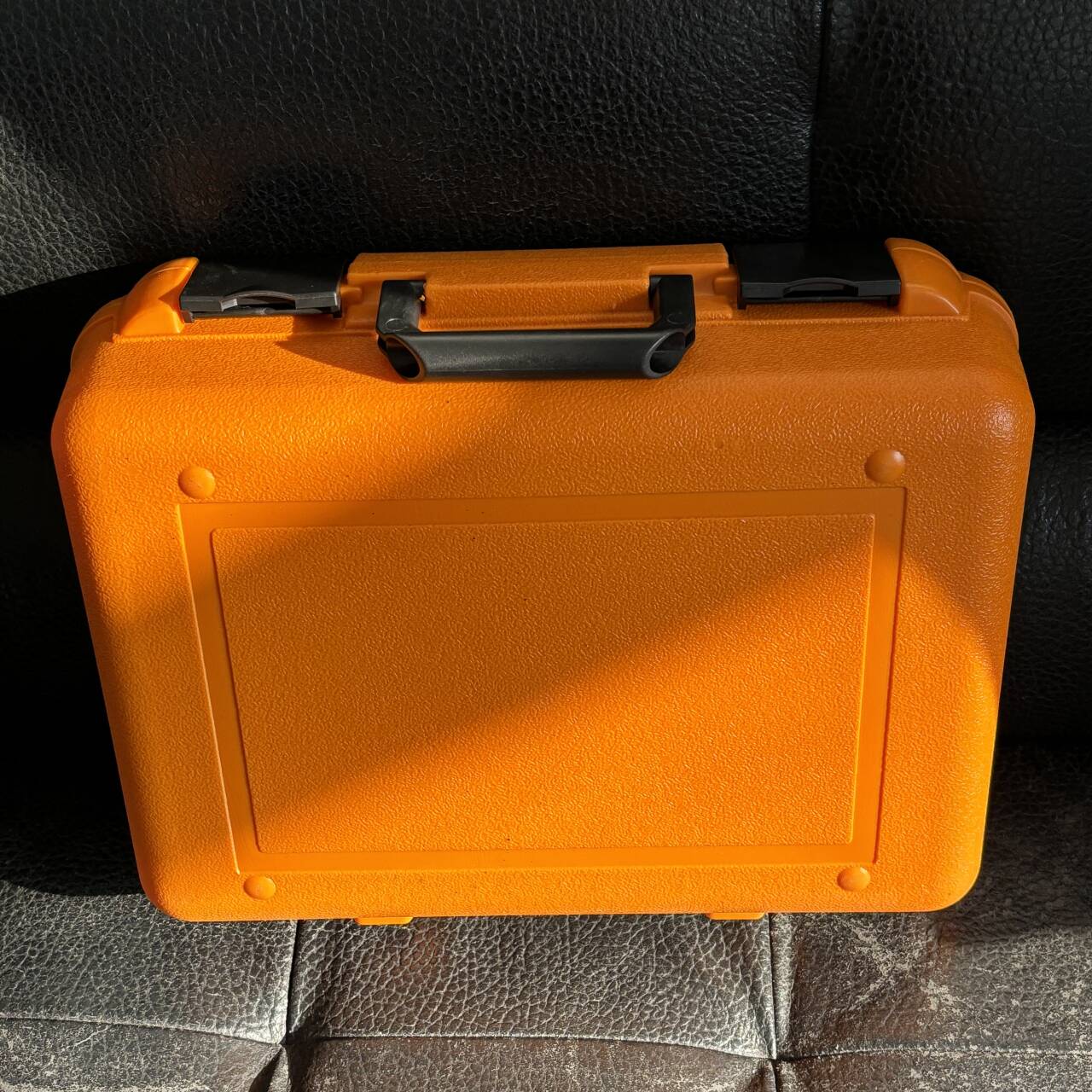

Rebar Corrosion Detector HCD-110 NDT Instrument Test Rebar Corrosion In The Concrete Structure Images
