Advanced Fluorescent Magnetic Particles Flaw Detector HCDX-10000C
Advanced fluorescent magnetic particles flaw detector (fully enclosed) is applicable to detect the surface and near surface defects such as cracks and slag of small or medium-sized ferromagnetic class workpiece (such as bolt, pin shaft, shaft sleeve, gear, gear ring, crankshaft, etc.). Generally, these defects are caused by forging, quenching, grinding, and fatigue.
Characteristics:
l Adopting appearance patented design, which is accord with human engineering
l High power LED UV lamp
l Fluorescent or non- fluorescent magnetic particles inspection
l Fully enclosed structure for prevent liquid splash

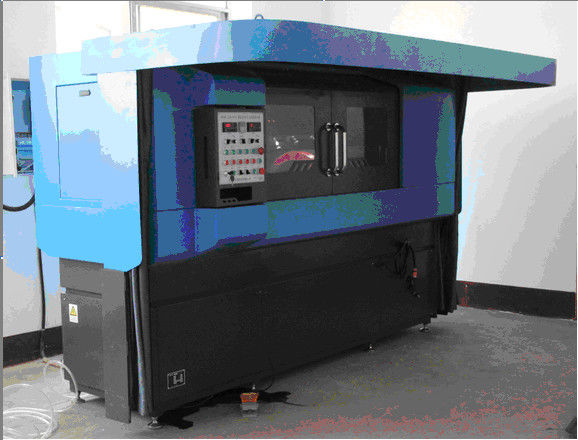

l Fully enclosed darkroom or foldable semi-closed darkroom
l Integrated or split host
- Circular , longitudinal , and resultant magnetization
l Main components are international famous brands
- Continuously adjustable current, it can be preset and showed as true RMS
l Optional single-phase or three-phase, half-wave or full wave DC magnetization
- Anti-spark copper pad for circular magnetization
l Phase controlled function
l Automatic attenuation demagnetization or ultra-lower frequency demagnetization
Configuration table:
| Type Configuration | C- | C | C+ |
| (PLC) Programmable logic controller (PLC) | ● | ● | ● |
| Digital ammeter | ● | ○ | |
| Touch screen | ○ | ● | ● |
| Current preset | ○ | ● | ● |
| DC magnetization | | ○ | ○ |
| Contact detection | ● | ● | ● |
| Anti-spark copper pad | ● | ● | ● |
| Pneumatic clamp | ● | ● | ● |
| Fully enclosed darkroom | ● | ● | |
| Foldable darkroom | | | ● |
Notes: “●”marked as standard, while “○”marked as option.
