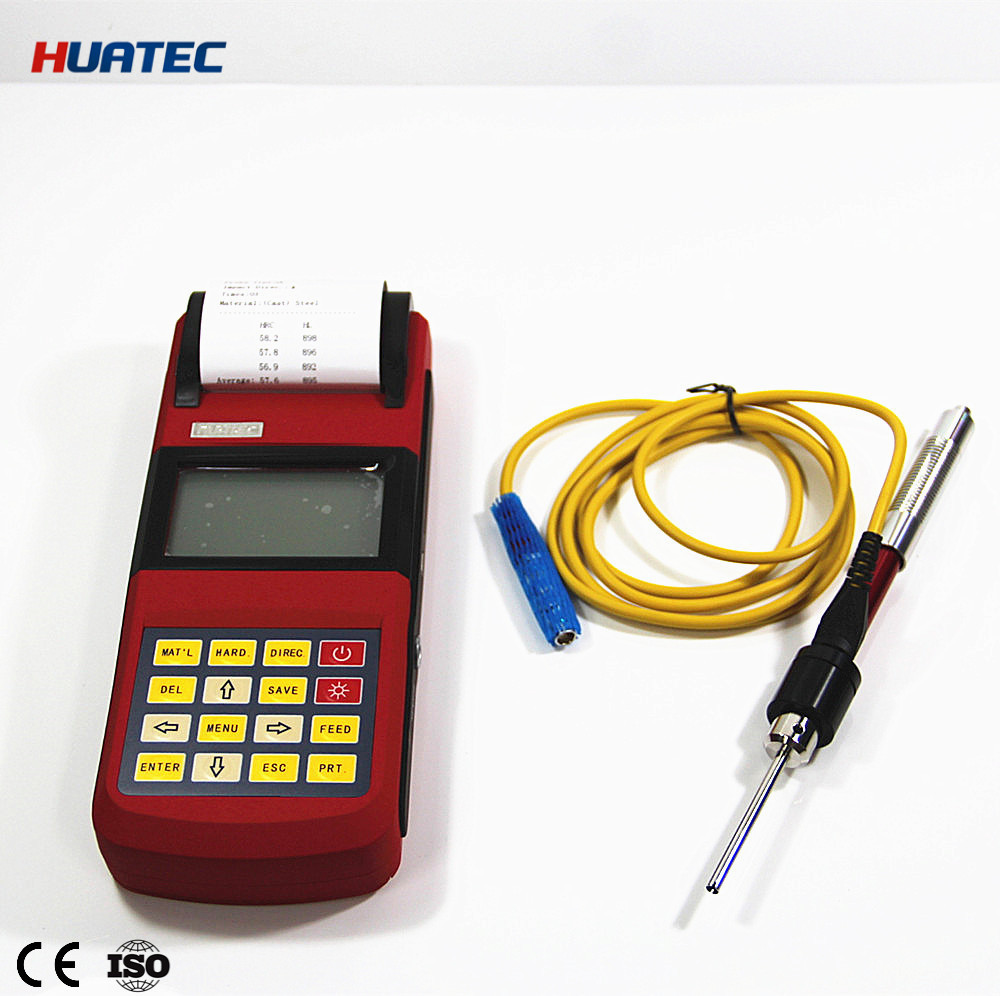

High Precision Portable metal hardness tester with Printer and 3 Inch LCD or LED Display

High Precision 3 Inch LCD or LED Display Portable Hardness Testing Machine RHL160 with Printer

Main Application

•  Die cavity of molds
•  Bearings and other parts
•  Failure analysis of pressure vessel, steam generator and other equipment
•  Heavy work piece
•  The installed machinery and permanently assembled parts
•  Testing surface of a small hollow space
•  Material identification in the warehouse of metallic materials
•  Rapid testing in large range and multi-measuring areas for large-scale work piece

Features

•  3 inch LCD,or LED display
•  Wide measuring range. Based on the principle of Leeb hardness testing theory. It can measure the Leeb hardness of all metallic materials.
•  Large screen(128×64 dot matrix LCD), showing all functions and parameters.
•  Test at any angle, even upside down.
•  Direct display of hardness scales HRB, HRC, HV, HB, HS, HL.
•  Seven impact devices are available for special application. Automatically identify the type of impact devices.
•  Large capacity memory could store 500 groups (Relative to average times32～1 ) information including single measured value, mean value, testing date, impact direction, impact times, material and hardness scale etc.
•  Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
•  Battery information indicates the rest capacity of the battery and the charge status.
•  User calibration function.
•  Software to connect with PC via USB port.
•  With EL background light.
•  Thermal printer integrated, convenient for in field printing.
•  NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).
•  Auto power off to save energy.
•  Outline dimensions:215mm×85mm×42mm

Parameters

•  Measuring range:HLD(170～960)HLD
•  Measuring direction:360°
•  Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS
•  Display:dot matrix LCD,128×64 dots
•  Data memory: 500 groups max.(relative to impact times 32～1)
•  Printing paper: width is (57.5±0.5)mm, diameter is 30mm
•  Battery pack: 6V NI-MH
•  Battery charger: 9V/500mA
•  Continuous working period:about 150 hours(With backlight off, no printing)
•  Communication interface:USB1.1
•  Working temperature: -10℃～＋50℃;
•  Storage temperature:-30℃～＋60℃;
•  Relative humidity: ≤90％;
•  The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

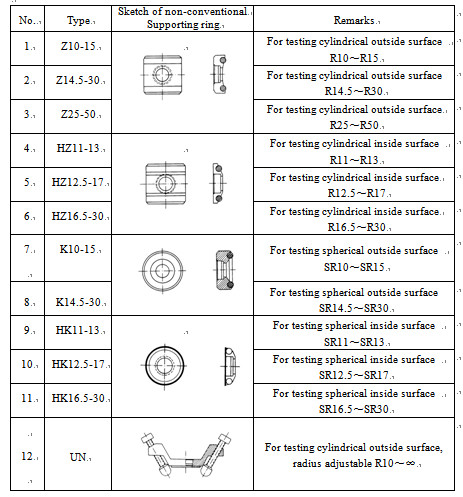

Testing Range

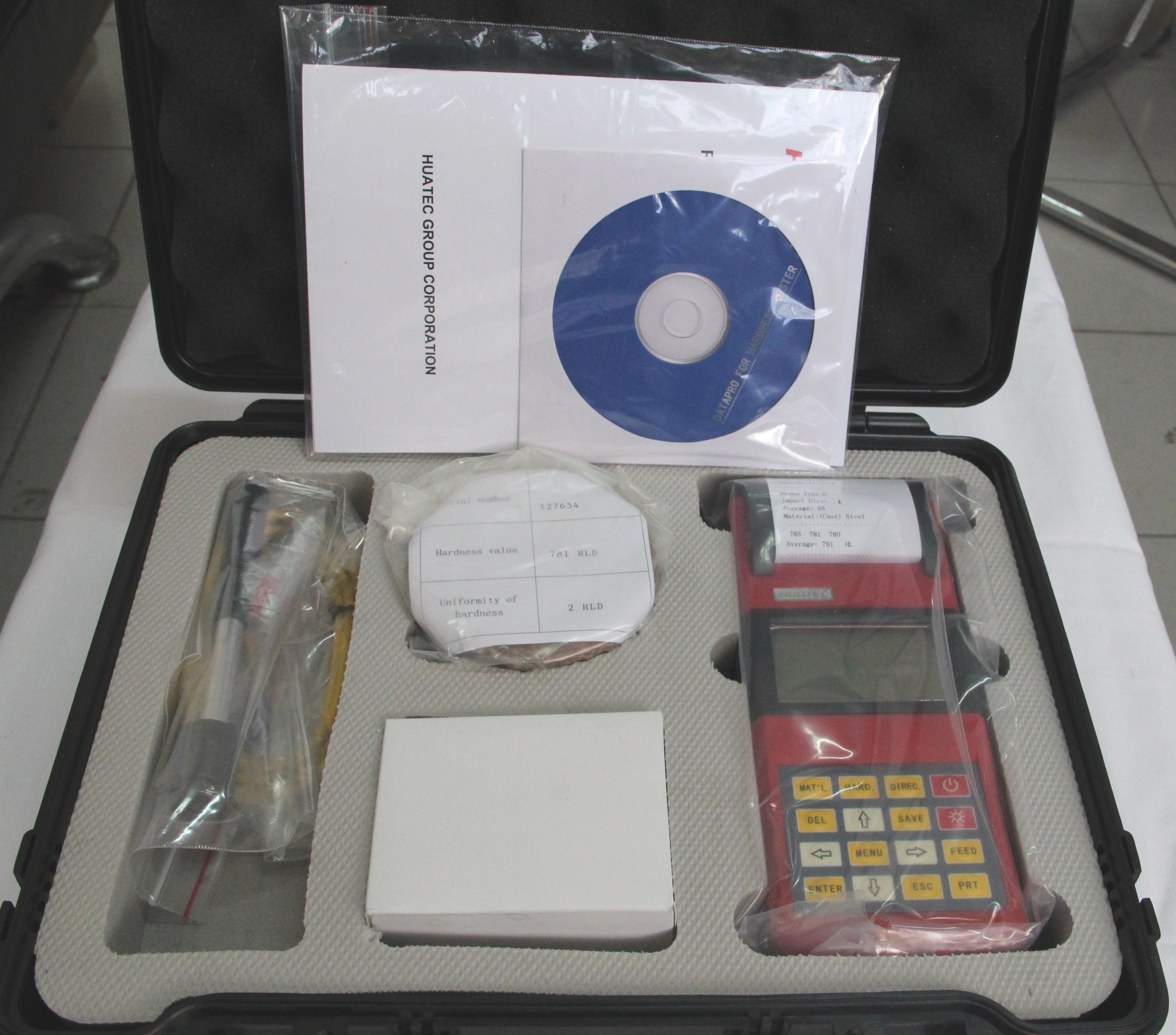

Configuration
