Magnetic Coating Thickness Gauge TG8825 for non - magnetic coating layers

Name: Magnetic Coating Thickness Gauge TG8825 for non magnetic coating layers
Brand: HUATEC
Price: 1 USD

Buy cheap Magnetic Coating Thickness Gauge TG8825 for non - magnetic coating layers product

Place of Origin : China

Brand Name : HUATEC

Model Number : TG8825

Certification : CE

MOQ : 1 set

Packaging Details : Carton

Delivery Time : 3-7 working days

Payment Terms : TT, L/C, Western Union

Measuring principle : magnetic induction & eddy current

Measurement range : 0～1250um

Data output : RS232C interface (optional)

Power supply : 4x1.5V AAA(UM-4)battery

Dimension : 131x65x28mm

Weight : 81g

Contact Now

Magnetic induction 1250um Coating Thickness Gauge TG8825 for non - magnetic coating layers

Application:
1. Coating thickness gauge TG-8825F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. Coating thickness gauge TG-8825N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

Description:

Function: TG-8825F (ferrous substrate) TG-8825N (non ferrous substrate) TG-8825FN (2 in 1, F & NF type)
Measuring principle: magnetic induction & eddy current
Measurement range:0～1250um in built probe (integrated probe)
Resolution:0.1 um (under 100um) 1um (over 100um)
Accuracy: ±1～3%n or ±3um
Probe type recognition: Manual (For TG-8825FN)
Measurement mode: single
Data output: RS232C interface (optional)
Power supply: 4x1.5V AAA(UM-4)battery
2 Shutdown models: manual / automatic
Dimension: 131x65x28mm

Weight:81g

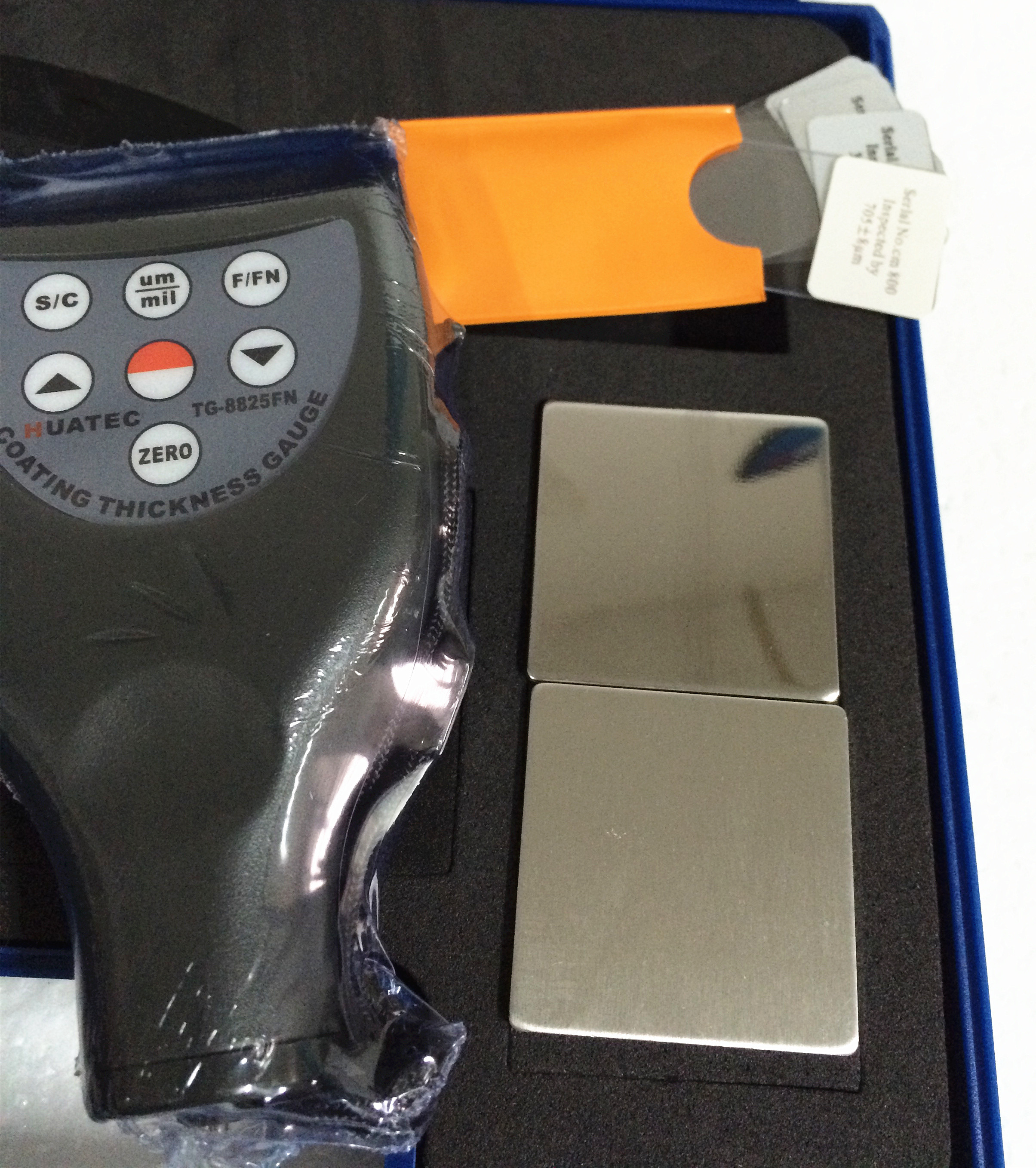

Standard Delivery of Paint Thickness Gauge TG8825FN:
Main unit(1250um)                        1
F type probe                                  1
N type probe                                 1
F calibration base set                   1
N calibration base set                   1
Calibration foil set                         1set (4 foils)
Carrying case                                1
Instruction manual                        1

Optional Accessories
Cable and software for RS-232C

Magnetic Coating Thickness Gauge TG8825 for non - magnetic coating layers

Product Tags:

coating thickness meter

digital coating thickness gauge

Magnetic Coating Thickness Gauge TG8825 for non - magnetic coating layers Images
