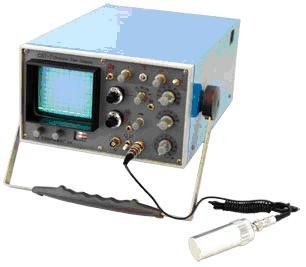

Analog 4A / 9V Ultrasonic Flaw Detector FD100 Real Reliable Signal And Echo with Big Gain Reach 108dB
Features
Real and reliable signal and echo
Excellent working performance
Big gain reach 108dB
Big display screen, high brightness
Direct sourcing power supply and battery all are available in one machine
Automatic alarm for error input and output echos
Specifications
Gain 0-108dB(10dB×5,6dB×8,1dB×10)
Horizontal Linearity Error ≤1%
Vertical Linearity Error ≤3.0%
Dynamic range ≥30dB
Sensitivity Leavings ≥50dB(200mm-Φ2 flat bottom hole,2.5PΦ20)
Resolution ≥30dB(2.5MHz straight beam probe)
Size(WxHxT) 235×135×335mm
Weight 5Kg
Probe cable connector BNC/ LEMO-1
Battery working time 4～5 hours continuously
Power supply 220/110VAC
Display screen type high brightness salt screen
Screen size 75mm×65mm
Working frequency 0.4-~16 MHz
Standard Delivery
Main unit
Stand echo probe
2.5MHz-ф20 straight probe
4MHZ-8x9mm, 60degree angle probe
4A/9Vpower adapter
Probe connection cable (BNC to Lemo 00)
Instruction manual
Carrying case
Opptional Accessories
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe (Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
UT calibration block IIW V-1, IIW V-2 block DAC etc.
