Inverter AC Battery MT610 Type Electromagnetic AC/DC Yoke HCDX-Y9T
Oerview
The HCDX-Y9T is a durable, high-strength AC DC agnetic yoke designed to detect surface and sub-surface indications in the most rugged applications.
Featuring sealed chemical-resistant construction, articulating legs to contour to any part shape and robust strain-relieved twelve-foot cord for field use, the HCDX-Y9T is ideal for inspection of welds and other remote testing.
Solid-state controls allow the operator to use AC DC magnetic fields for surface indications to meet all inspection needs.
The charging type magnetic particle flaw detector has the characteristics of compact structure, reasonable layout, small size, light weight and convenient portability. The flaw detector can be used directly in DC magnetized power supply (DC-AC inverter battery pack),which is efficient and portable. It is suitable for hull weld inspection, high altitude steel structure weld detection and pressure vessel internal operation. This instrument is suitable for steel structure parts of power, metallurgy, petrochemical, machinery and other industries, such as boiler, pressure vessel, pressure pipe, ship body weld and welding structure of various types of ferromagnetic material surface and magnetic particle flaw detection of near surface defect.
This instrument conforms to the standard requirements of JB/T7411-2012, ASME BPVC,ASTM E709,ASTM E1444,ASTM E3024."electromagnetic yoke flaw detector technical condition".
Technical parameter
| Electromagnetic Yoke | HCDX-Y9T |
| Working temperature | -10 ~ +40 C |
| Storage temperature | -20 ~ 50 C |
| Relative humidity | <80% non condensation |
| Work temperature rise | <18 C |
| Temporary load rate | >50% |
| Sensitivity | A1 standard test piece 15/50 groove clearly displayed |
| AC minimum power hoisting power | >4.5kg (44N) |
| DC minimum power hoisting power | >18.1kg (177N) |
| Electrode spacing | 0～210mm |
| Maximum current | 2.8A |
| Weight | 2.6kg |
| major function | Direct alternating current magnetization |
| AC magnetization of rechargeable battery pack | MT-610 |
| Name | DC magnetized power supply |
| Model | MT-610 |
| output voltage | AC |
| Power type | Lithium battery |
| Charging current | 2A |
| Battery capacity | 8000Ah |
| Working time | About 6h |
| Shape size | 55×95×240mm |
| weight | 1.2kg |
Product features
Sealed, durable construction
Chemical and abrasion resistant
AC operation for surface and sub-surface inspection
Exceeds ASTM lifting specifications
It is possible to use AC magnetized power supply (DC-AC inverter battery pack) to supply AC power without any direct insertion to AC power supply.
The DC magnetizing power supply (DC battery pack) can be used to realize the DC magnetization function.
When the lifting force is not enough, the power is automatically cut off to ensure the sensitivity of flaw detection.
The power display function can display the current battery power, and has the function of sound and light alarm.
Built in microcomputer chip to stabilize output voltage and ensure detection sensitivity.
Adjustable magnetization
Special working waist bag can carry battery pack, magnetic suspension, contrast agent, yoke probe, etc.

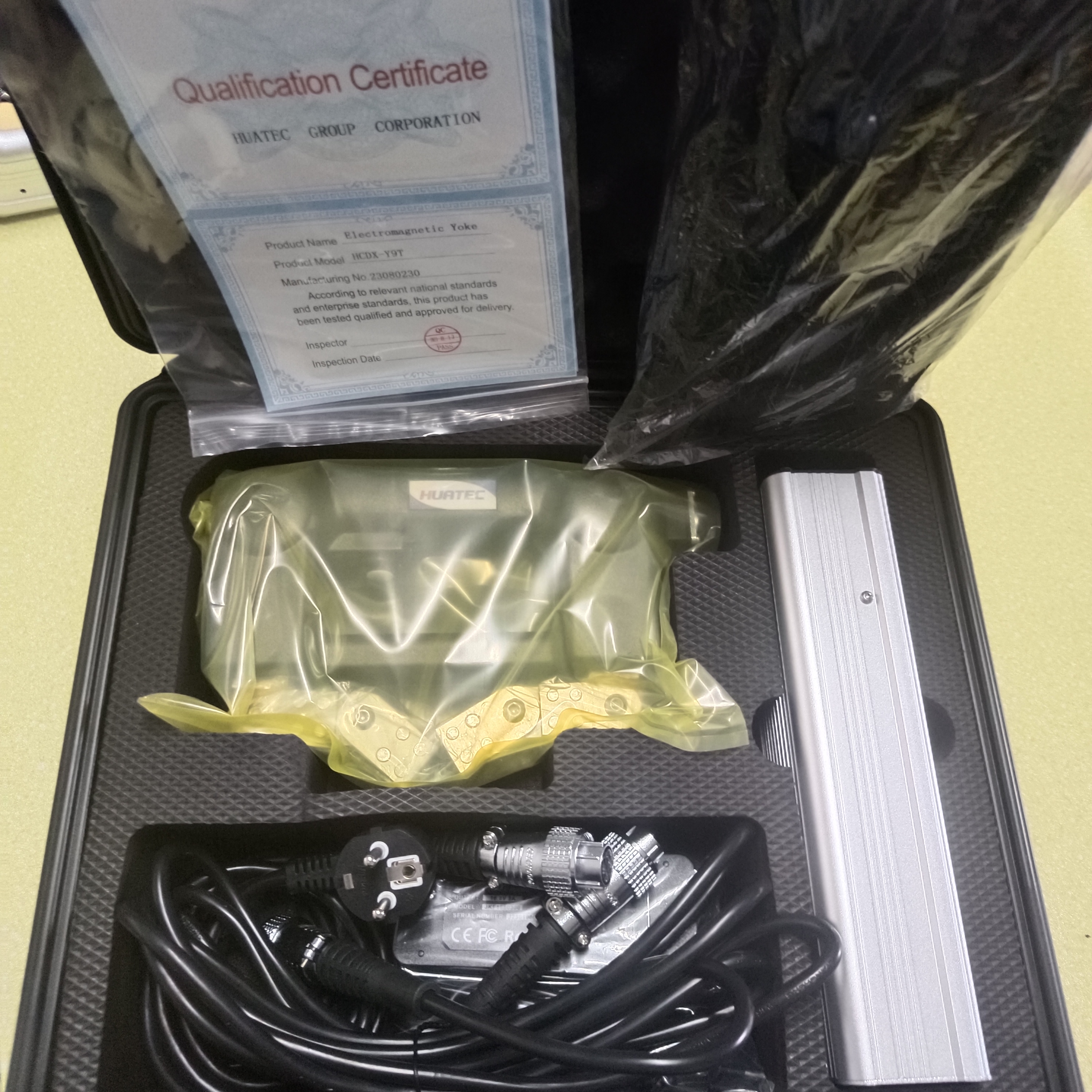

Standard configuration:
Magnetic powder flaw detector host HCDX-Y9T 1pc
Power line 1pc
Rechargeable type DC-AC inverter battery pack MT610 (AC magnetization power supply) 1pc
AC power backpack 1pc
Power adapter 1pc
AC output connection line 1pc
Instrument box 1pc
