Ndt LED Light Source Handheld Densitometer Density Meter Density 0.00-5.00 D

Density 0.00-5.00 D LED Light source Density Meter Densitometer

Technical Specifications:

Density: 0.00-5.00 D with 2mm aperature
0.00-4.00D with 1mm aperature
Probe Temperature compensated
Display: 4 digit LED
Accuracy: ±0.02 D
Resolution: 0.01D
Repeatability: 0.01D
Custom calibration range:-0.19 ~ +0.19D (ProgramMode)
Warm up time: No need
Detector: Silicon photodiode
Light source: LED
Power supply: 90V–264V AC / 47-63Hz
Dimensions: 360mm x 260mm x 120mm
Weight: 1.7Kg

Characteristic:
LED Lighted Table, 5 steps of luminance and 2 areas for selection
High spot luminance, simplifies location of image areas to measure
Program Mode for custom calibration
The densitometer will remain in proper alignment even though it is picked up by the arm
Calibrated to AGFA film strips
Measuring Range: 0 - 5 : 0 - 5.0D, High Accuracy±0.02 D
No warm-up time
Soft Rubber probe head to protect films

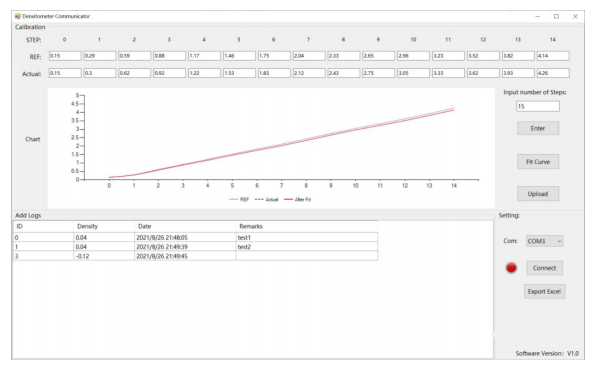

PC Utility available(AUTO Recalibration and Add Logs using USB connect to PC)

Standard accessories:
Main unit: 1
Aperature:3 (1mm, 2mm[default],3mm)
1m USB Cable
Software DT Utility (English Version)
Instruction manual (English): 1
Test Report(English): 1

ndt handheld densitometer

led light handheld densitometer

ndt portable densitometer

Ndt LED Light Source Handheld Densitometer Density Meter Density 0.00-5.00 D Images
