Name: Ndt Dg4020 Mpi Testing Machine Dual Ac Dc Operation
Brand: HUATEC
Price: 1 USD

Brand Name : HUATEC

Model Number : DG-4020

Certification : ISO，CE，Gost

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 100 sets per month

Delivery Time : 3-7 days

Packaging Details : in High quality carton

Product name : handheld LED-UV Lamp

Model : DG-4020

Style : Handheld

White light content : ≤3LUX

Light distribution characteristics : Central light distribution

Power Supply : AC100- 240V，50/60Hz

Contact Now

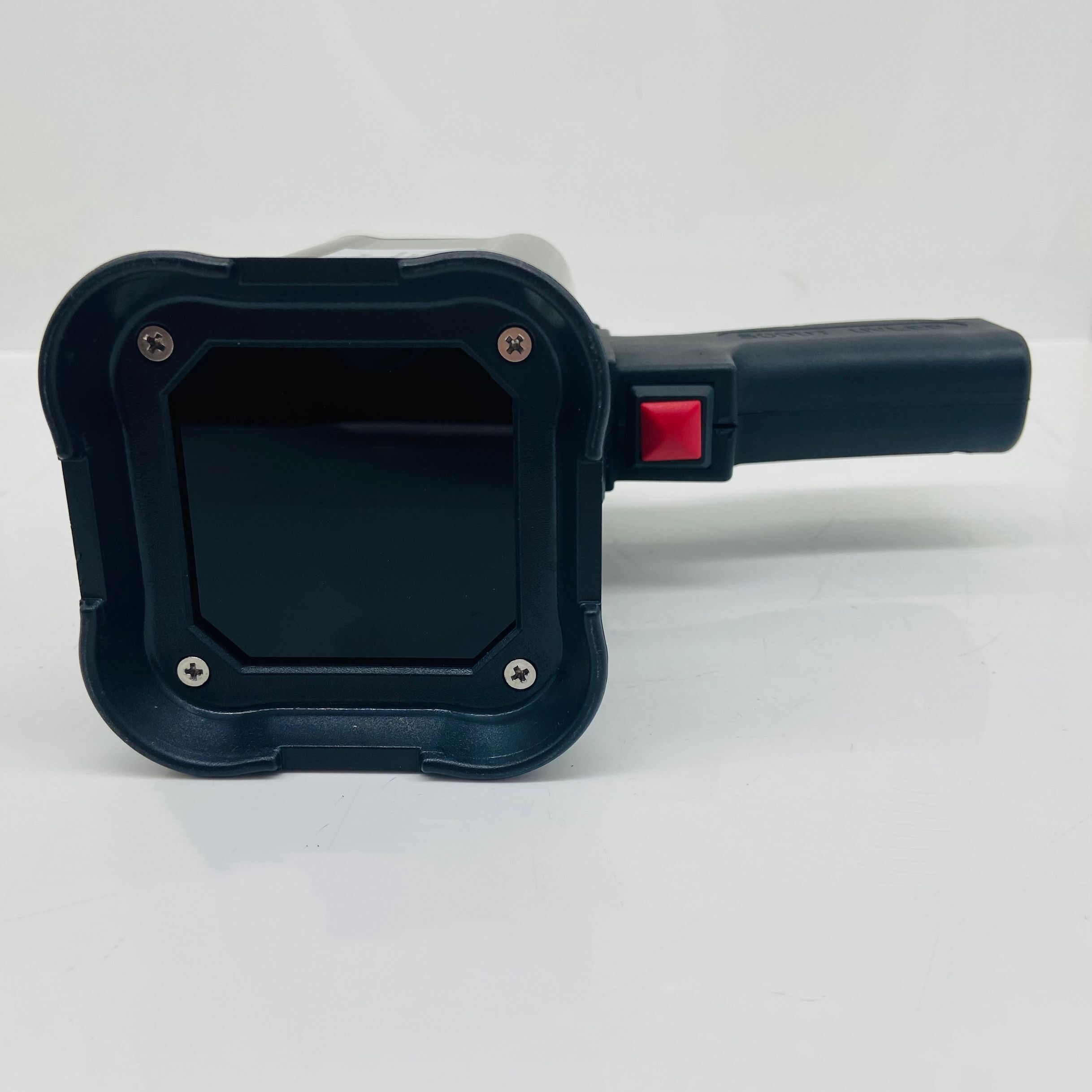

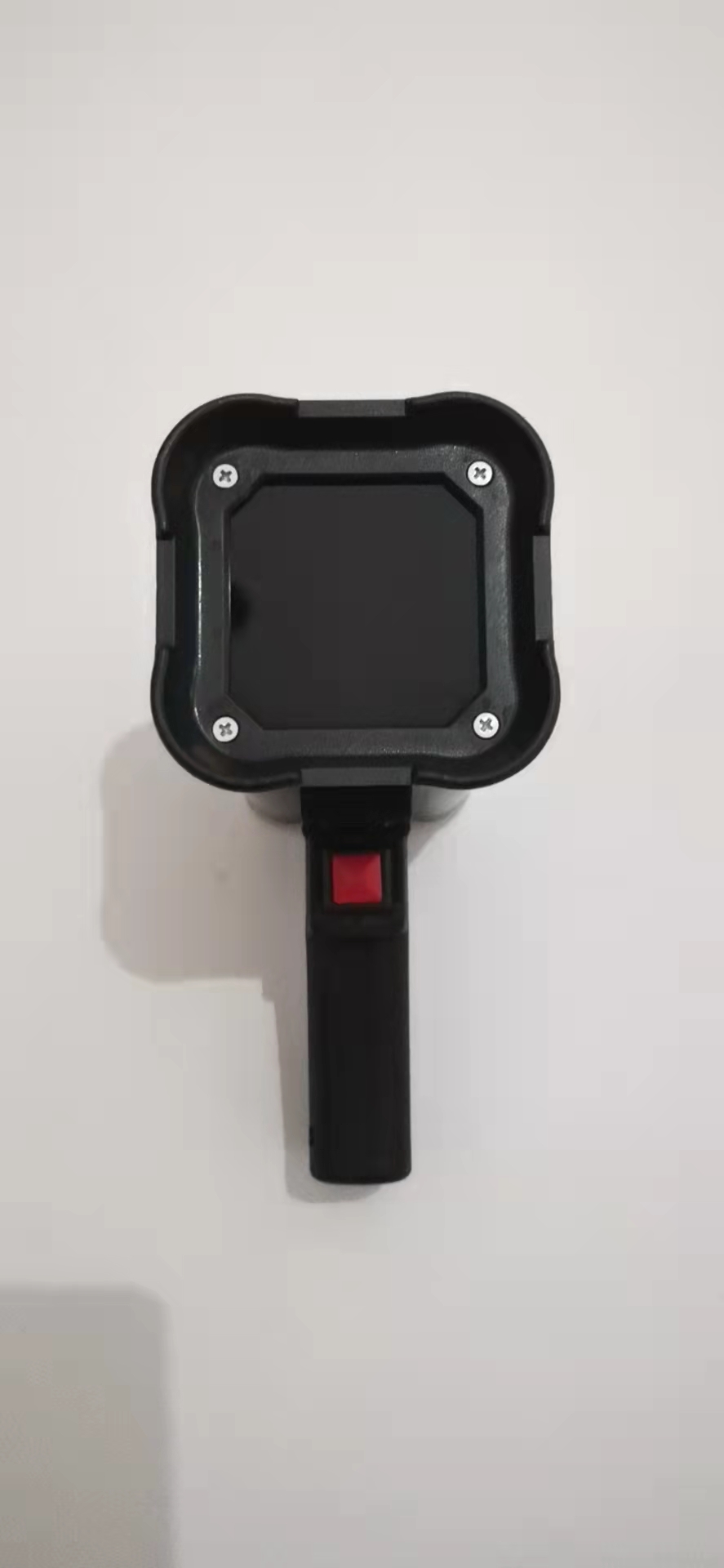

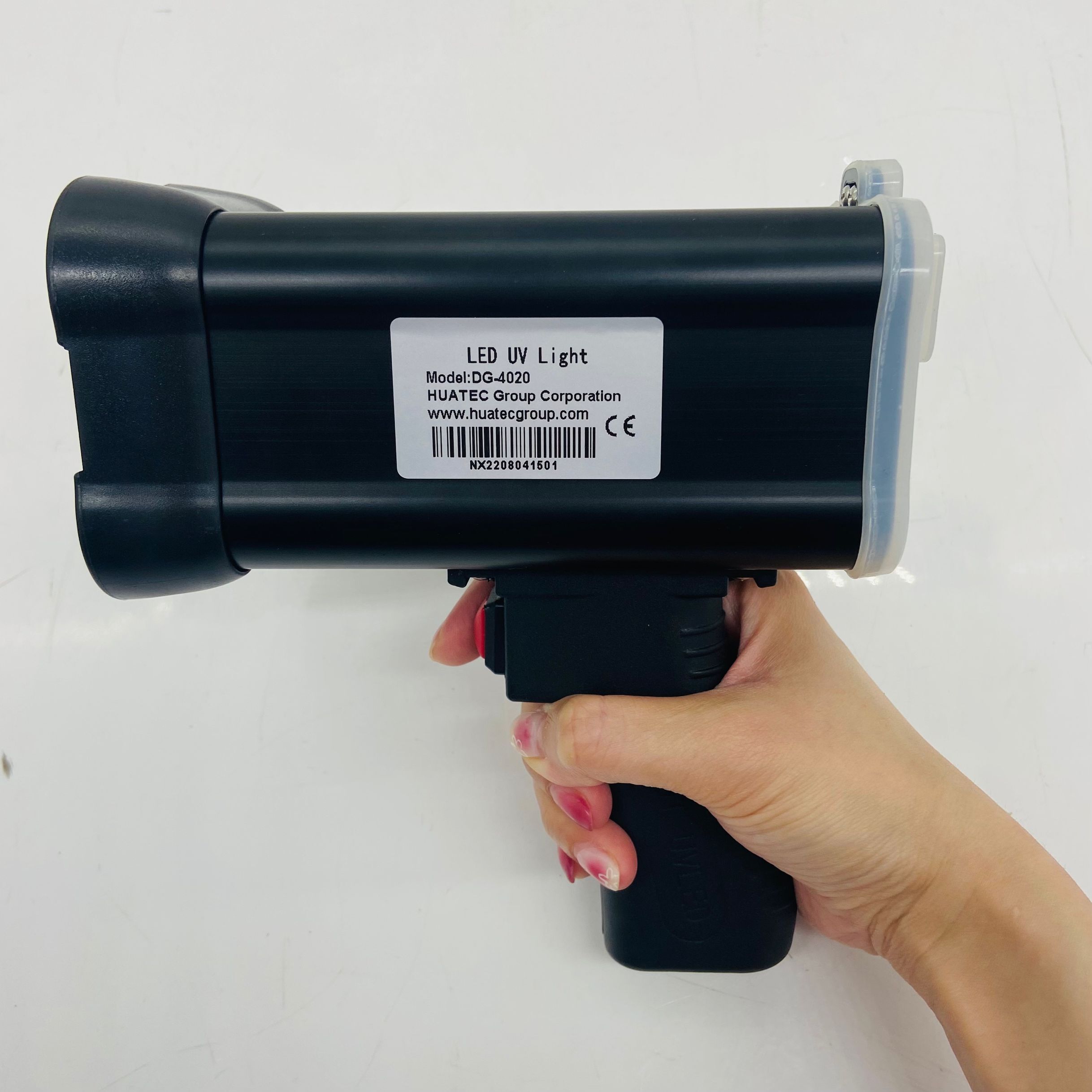

NDT DG-4020 Dual AC&DC operation handheld LED-UV Lamp Magnetic Particle Inspection

Feature:

● Strictly comply with ASTM E3022

● UV-B content is 0

● Battery life of 2-3 hours

● Quick Battery Replacement

● Only 560g of battery is included

● Temperature rise of external surface under continuous operation < 8K (8℃)

● It has colour filter glass, and the white light content is less than 20LUX

● Can work with AC directly and also with DC battery Dimension: (mm)

Parameters:

Project	Parameter / mode
Style	Handheld
UV(Light)-FLUX Indoor temperature 25℃	6000uW/cm2
White light content	≤3LUX
Irradiation area at depth of 380mm: (≥1000uw/cm²)	Φ300mm
Flux error	0-40℃ ±10%
Light distribution characteristics	Central light distribution
Power Supply	AC100- 240V,50/60Hz
Power	UV LED-12VA
Wavelength	Room temperature 25℃, 365nm±3nm (UVA)
Overall dimension	157. 5mm (W) 76mm (D) 177mm (H)
Weight	560g including battery
Battery capacity	2200mA/H 12.6V
Charging time	2-3H
Battery life (cumulative time)	UV LED 2-3H
