CE Ultrasonic Thickness Gauge Measuring Thickness And Corrosion Of Pressure Vessels

Name: CE Ultrasonic Thickness Gauge Measuring Thickness And Corrosion Of Pressure Vessels
Brand: HUATEC
Price: 1 USD

Buy cheap CE Ultrasonic Thickness Gauge Measuring Thickness And Corrosion Of Pressure Vessels product

Brand Name : HUATEC

Model Number : TG-2910

Certification : CE ISO

Place of Origin : Beijing

MOQ : 1 set

Payment Terms : TT, L/C, Western Union

Supply Ability : 500 sets per months

Delivery Time : 3-7 working days

Packaging Details : in standard export carton

Product name : Ultrasonic Thickness gauge

Model : TG-2910

 Measuring range : 1.2-225mm, 0.05-9inch

 Operating principle : ULTRASONIC

 Sound velocity : 500-9000m/s

 Calibration block : included

Contact Now

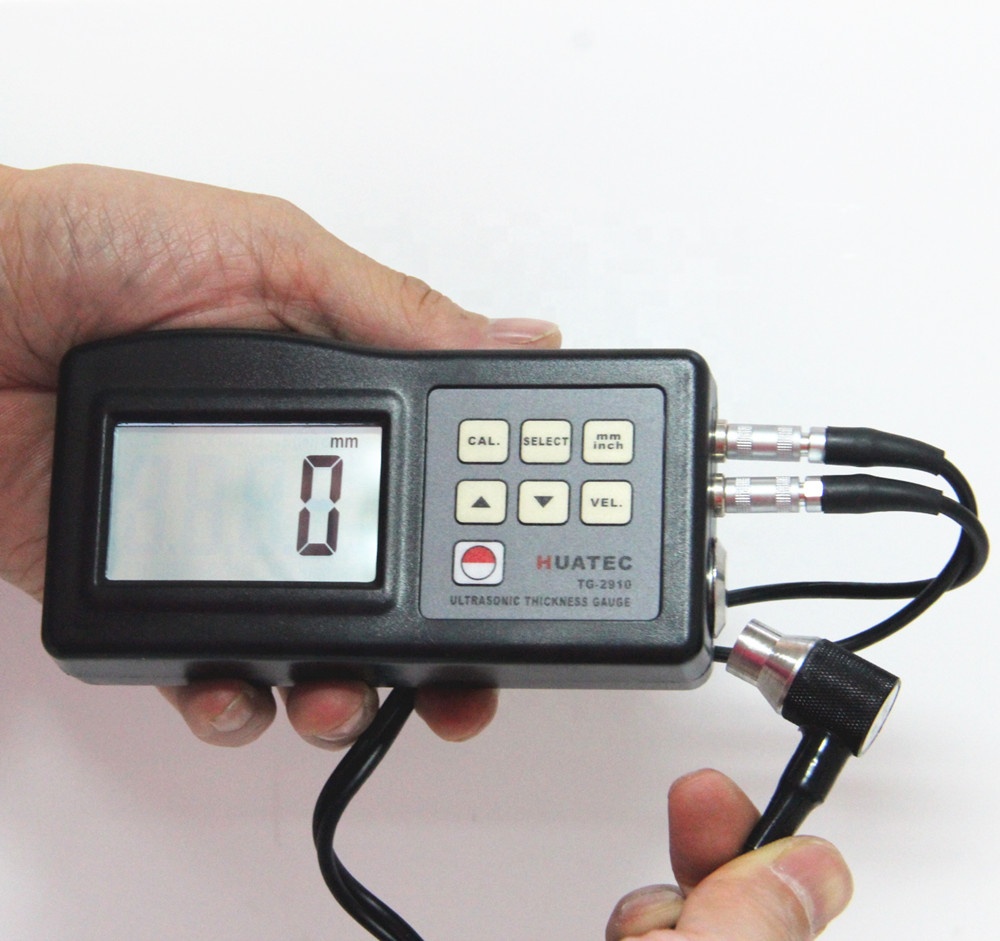

Ultrasonic Thickness gauge TG-2910

Application

TG-2910 can be used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.

Description

l Measuring range (metric/imperial)	1.2-225mm, 0.05-9inch
l Operating principle	ULTRASONIC
l Sound velocity	500-9000m/s
l Lower limit steel pipes	ф15x2.0mm, ф20x3.0mm determined by the transducer
l Calibration block	included
Resolution	0.01mm
l Accuracy	±(0.5%n+0.1)
l Power supply	4x1.5V AA(UM-3)battery
l Battery indicator	low battery indicator
Operating conditions	0-+45℃(32℉-104℉),≤90%RH
l Dimensions	120x62x30mm
l Weight	164g (not including battery)

Standard Delivery

Main unit:1
5M Φ8 Transducer:1
Couplant bottle:1
Carrying case:1
Instruction manual:1

CE Ultrasonic Thickness Gauge Measuring Thickness And Corrosion Of Pressure Vessels

Optional Accessories

1. 6M Φ6mm thin material probe:

measuring range (steel): 1.0-50.0mm

Operating temperature:-10-+60℃

2. 5M Φ12mm high temperature probe:

measuring range (steel):4.0-100.0mm

Operating temperature:-10-+300℃

3. Cable and Software for RS232C interface

Product Tags:

pressure vessels ultrasonic thickness gauge

CE ultrasonic thickness gauge

HUATEC ultrasonic thickness gauge

CE Ultrasonic Thickness Gauge Measuring Thickness And Corrosion Of Pressure Vessels Images
